Shore Mounted Stirrer
Designed for large ponds the shore mounted stirrer provides safe access for service and maintenance of your effluent system. With a developing need to keep a good solid / liquid mix, the Yardmaster range of stirrers have become a key element of many effluent systems

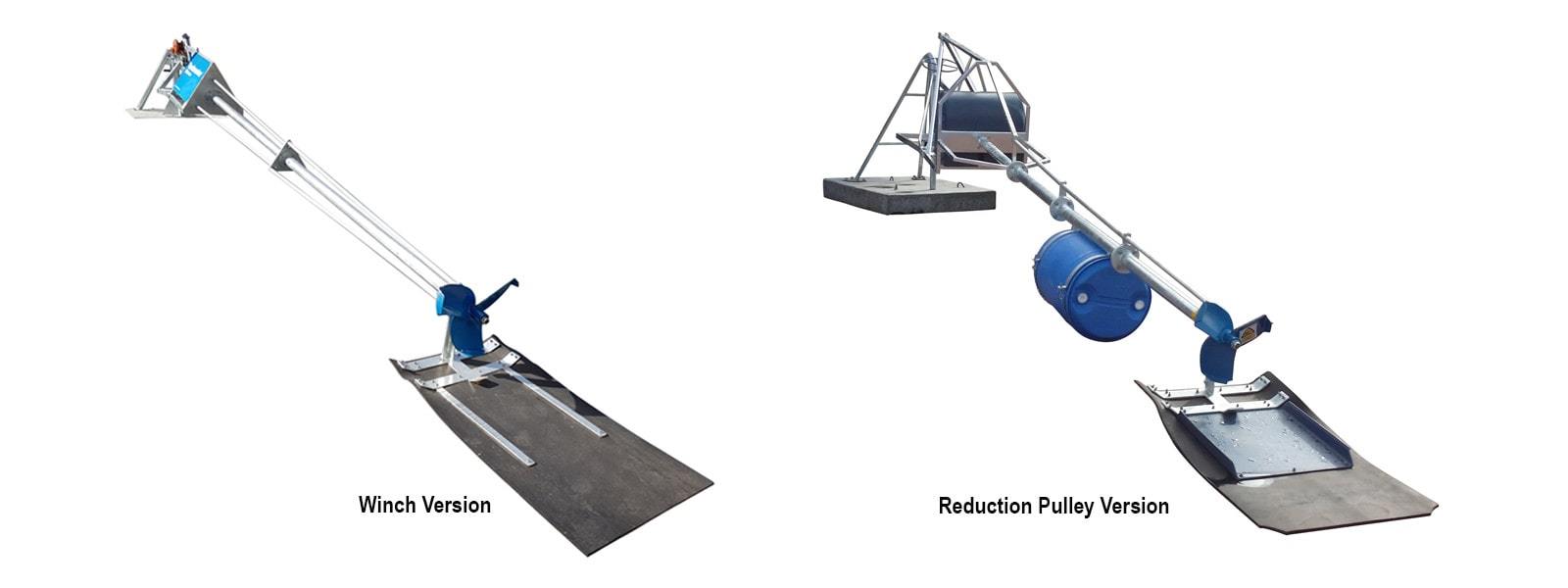

|Winch Version:||Reduction Pulley Version:|
|Using a 4-pole motor, the Yardmaster stirrer runs through a reduction planetary gearbox to do approximately 300rpm at the propeller||Using a 4-pole motor, the Yardmaster stirrer runs through a reduction pulleys to do approximately 400rpm at the propeller|
|Standard stirrer lengths of 6.9m and 9.6m||Standard stirrer lengths of 7.8m and 10.5m|
|Incline angle adjustment done with ease via the winch||Incline angle adjustment done via the turnbuckle|
|Slew angle adjustment||Above ground frame mounting|
|Above ground frame mounting||Easy installation and servicing|
|Easy installation and servicing||7.5kW and 11kW options|
|7.5kW and 11kW options|
It is of vital importance that the support provided for Williams Engineering products is of the same quality and professionalism as that of their manufactured products. Technical support is available through our nationwide dealer network or contact Williams Engineering direct.
Williams Engineering warrants new products sold by it to be free from defects in material and workmanship for a period of twelve months after delivery to the initial user. This warranty is for the replacement or repair of any part found to be defective during the warranty period. This warranty excludes any transport costs incurred by Williams Engineering in giving effect to the warranty and specifically excludes all normal maintenance costs. Replacement parts provided under the terms of this warranty are covered for the remainder of the warranty period applicable to the product in which they are installed as if such parts were original components of that product.
Warranty only applies if the form at the rear of the product manual is completed and returned.
